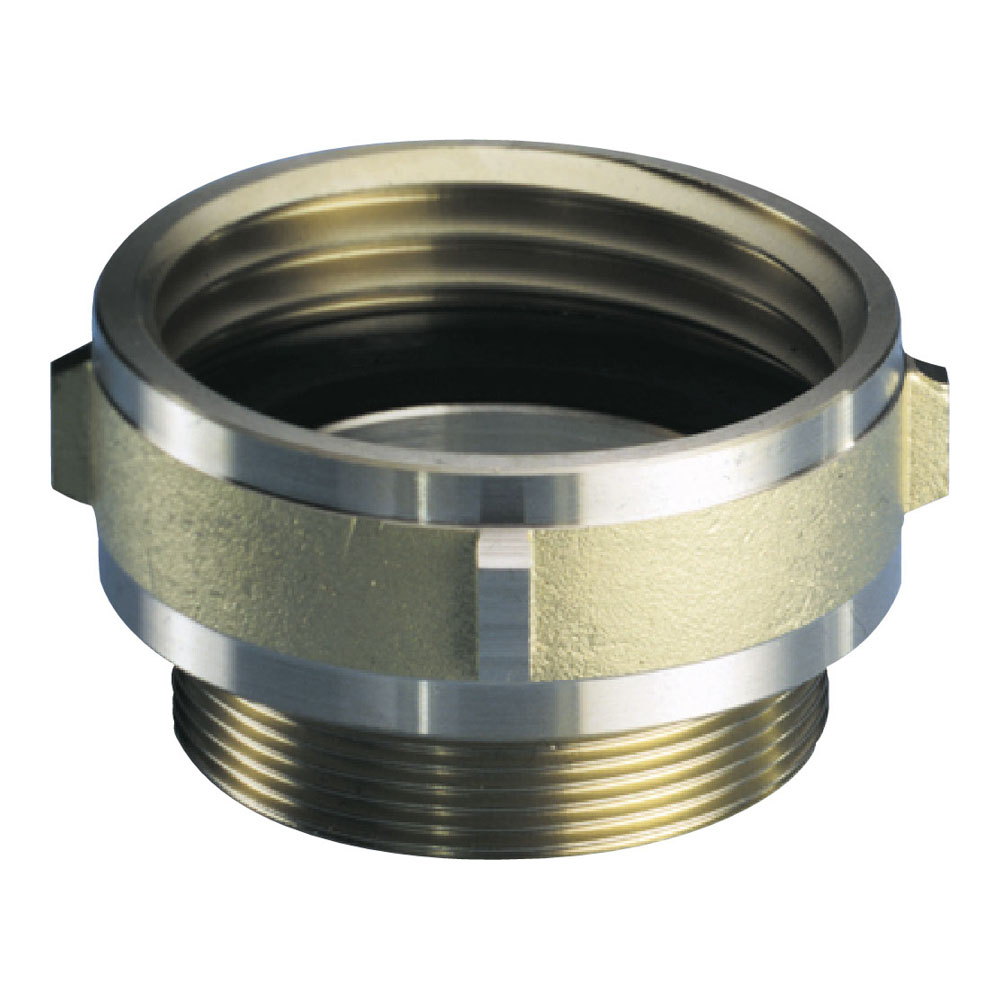

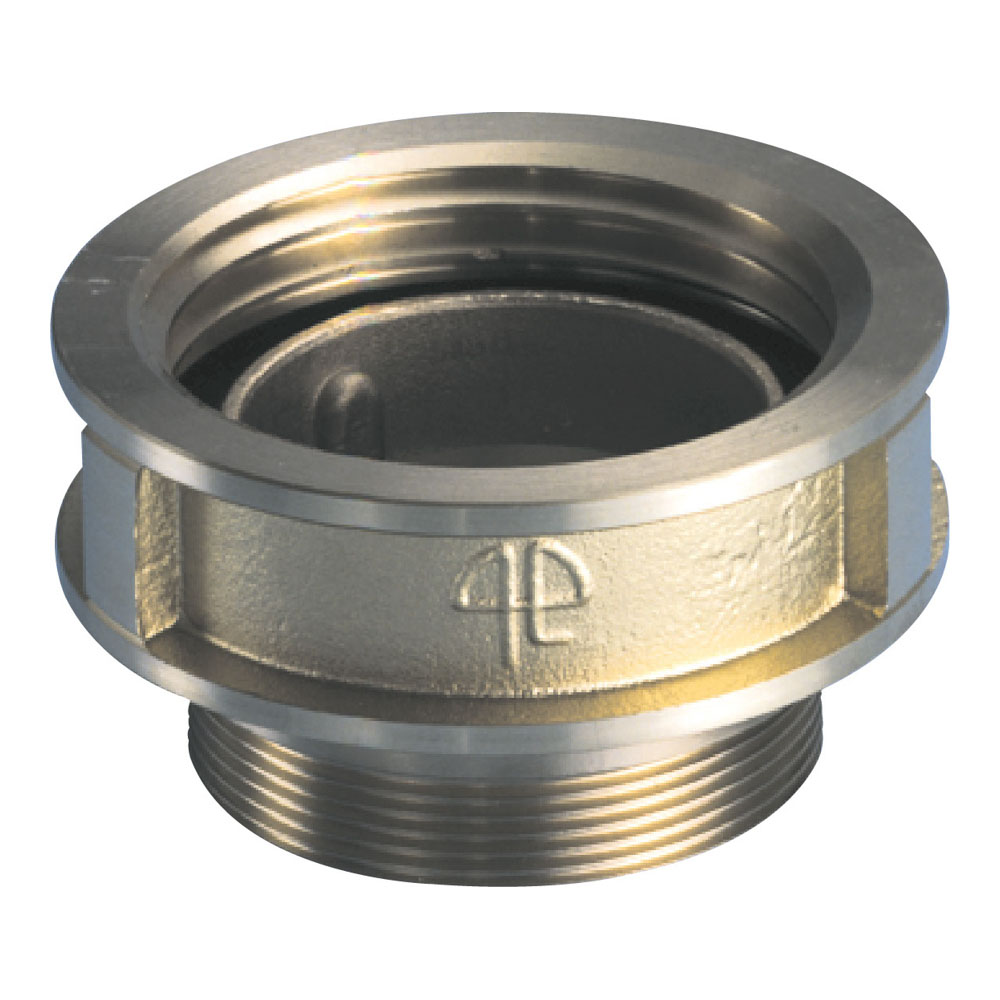

In ottone a norma EN, attacco femmina girello UNI 804, attacco maschio filettato UNI 810
| Materiale | Ottone |
|---|---|
| DN uscita | UNI 100 F, UNI 125 F, UNI 25 F, UNI 45 F, UNI 70 F, UNI 80 F |
| DN attacco | 1” Gas, 1”1/2 Gas, 1”1/4 Gas, 2” Gas, 2”1/2 Gas, 3” Gas, 3/4” Gas, 4” Gas, 5” Gas |
| Codice | Specifica | Uscita | Attacco |
|---|---|---|---|
| 1103.014 | FG 25 x M 3/4” | M 34x3 | 3/4” Gas |
| 1081.014 | FG 25 x M 1” | M 34x3 | 1” Gas |
| 1206.014 | FG 45 x M 1” | M 56x4 | 1” Gas |
| 1059.014 | FG 45 x M 1”1/4 | M 56x4 | 1”1/4 Gas |
| 1099.014 | FG 45 x M 1”1/2 | M 56x4 | 1”1/2 Gas |
| 1085.014 | FG 45 x M 2” | M 56x4 | 2” Gas |
| 1204.014 | FG 70 x M 2” | M 85x6 | 2” Gas |
| 1093.014 | FG 70 x M 2”1/2 | M 85x6 | 2”1/2 Gas |
| 1208.014 | FG 70 x M 3” | M 85x6 | 3” Gas |
| 2997.014 | FG 80 x M 2”1/2 | M 95x6 | 2”1/2 Gas |
| 2980.014 | FG 80 x M 3” | M 95x6 | 3” Gas |
| 2994.014 | FG 100 x M 4” | M 115x6 | 4” Gas |
| 2995.014 | FG 125 x M 4” | M 140x6 | 4” Gas |
| 2999.014 | FG 125 x M 5” | M 140x6 | 5” Gas |
